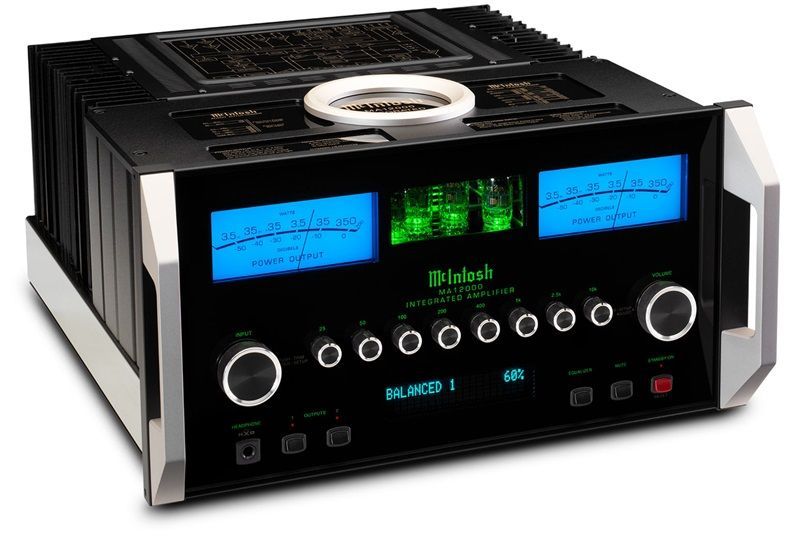

MA12000 - 2

ELECTRONIC SPECIFICATIONS

• FTC Power Output Rating

  350 W

• Power Output per Channel

  350 W into 2, 4, or 8 ohms

• Number of Channels

  2

• Rated Power Band

  20Hz to 20kHz

• Total Harmonic Distortion

  Preamplifier: 0.03%
  Amplifier: 0.005%

• Dynamic Headroom

  1.5dB

• Frequency Response +0,-0.5dB

  20Hz to 20kHz

• Frequency Response, +0, -3dB

  10Hz to 100kHz

• Sensitivity Phono (Moving Coil)

  0.30mV

• Sensitivity Phono (Moving Magnet)

  3.0mV

• Sensitivity High Level (Balanced / Unbalanced)

  600 mV/300mV

• Sensitivity (Power Amp input)

  1.7V

• Signal To Noise Ratio (Moving Coil)

  75dB

• Signal To Noise Ratio (Moving Magnet)

  77dB

• Signal To Noise Ratio (High Level)

  95dB

• Signal To Noise Ratio (Power Amp input)

  114dB

• Input Impedance (Balanced / Unbalanced)

  44K/22K

• Damping Factor

  >40

• Maximum Output (Balanced / Unbalanced)

  8V Unbalanced
  16V Balanced
