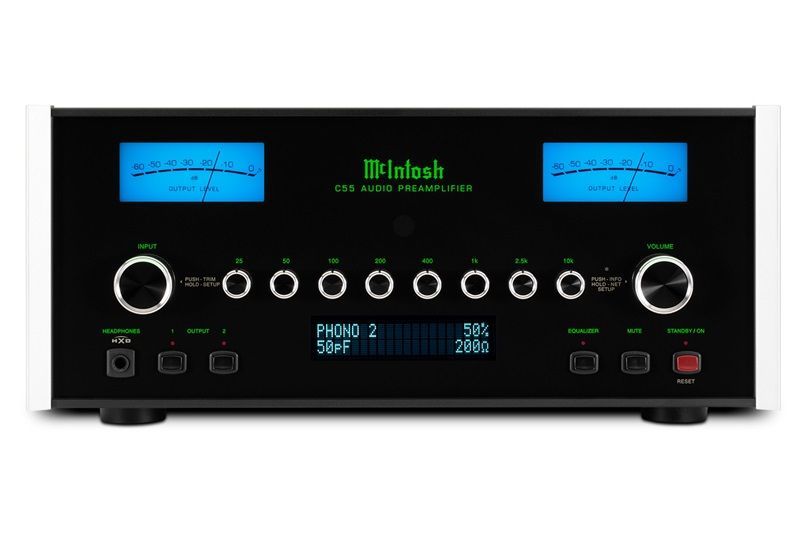

C55 - 2

ELECTRONIC SPECIFICATIONS

• Number of Channels

  2

• Total Harmonic Distortion

  0.005%

• Frequency Response

  +0, -0.5dB from 20Hz to 20kHz
  +0, -3dB from 15Hz to 100kHz

• Maximum Volts Out (Balanced / Unbalanced)

  16V RMS / 8V RMS

• Sensitivity High Level (Balanced / Unbalanced)

  900mV / 450mV

• Sensitivity Phono (Moving Coil)

  0.45mV

• Sensitivity Phono (Moving Magnet)

  4.5mV

• Signal To Noise Ratio (High Level)

  100dB

• Signal To Noise Ratio (Moving Coil)

  80dB

• Signal To Noise Ratio (Moving Magnet)

  82dB

• Voltage Gain (High Level)

  15dB

• Voltage Gain (Moving Coil)

  Selectable 40dB, 46dB, 52dB, 58dB, or 64dB

• Voltage Gain (Moving Magnet)

  Selectable 40dB, 46dB, 52dB, 58dB, or 64dB

• Input Impedance (Balanced / Unbalanced)

  44K ohm, 22K ohm
